Keysight Technologies (Agilent HP) N6756A

743 Visitors viewed Liberty Test Equipment, Inc. ads in the last 30 Days

Send Request
Keysight Technologies (Agilent HP) N6756A

 Add to request cart
Send to a Friend
Flag of USAEquipment Location: USA
View Description>
Hide Description

Description of Keysight Technologies (Agilent HP) N6756A

Categories: Power Supplies, Agilent HP Power Supplies

Manufacturer: Keysight Technologies (Agilent HP)

Model: N6756A

Condition: Used

Seller: Liberty Test Equipment, Inc.

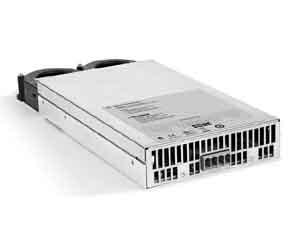

Keysight N6756A High-Performance Autoranging DC Power Module 60V, 16A, 500W

Product specifications of Keysight Technologies (Agilent HP) N6756A (From Used-Line T&M Specifications)

  • Launch Date Jan-2012
  • Number of Outputs Modular
  • Max. Voltage 60V
  • Max. Current 17A
  • Ripple and Noise Vp-p: 6 mV, Vrms: 1 mV, Arms: 4 mA
  • Computer Interface GPIB,USB 2.0
  • Status --

The Agilent N6756A is a 500 W high-performance, autoranging DC power module that provides low noise, high accuracy and programming speeds up to 10 to 50 times faster than other programmable power supplies. An optional high-speed test extension offers an oscilloscope-like digitizer that increases measurement accuracy when viewing high-speed transient or pulse events within the device-under-test (DUT). In addition, auto-ranging output capabilities enable one power supply to do the job of several traditional power supplies.

This module is used in both the small, multiple output 1U high N6700 Low-Profile Modular Power System (for ATE systems) and the multiple output N6705 DC Power Analyzer (for bench testing). GPIB, LAN, USB and LXI Class C compliance are standard. Select from more than 30 different DC power modules ranging in capability from basic to high precision, and in power from 20-500 Watts.

  • Auto-ranging outputs; acts like many power supplies in one
  • Low noise, high-accuracy sourcing and measurement
  • High-speed test extensions for digitized measurements and arbitrary waveforms (with option)
  • Output Ratings
    • Voltage: 60 V
    • Current: 17 A
    • Power: 500 W
  • Programming Accuracy (at 23°C ±5°C)
    • Voltage: 0.06% + 25 mV
    • Current: 0.1% + 12 mA
  • Ripple & Noise (20 Hz to 20 MHz)
    • Voltage peak-to-peak: 6 mV
    • Voltage rms: 1 mV
    • Current rms: 4 mA
  • Load Effect (Regulation)
    • Voltage: 2 mV
    • Current: 5 mA
  • Source Effect (Regulation)
    • Voltage: 1.2 mV
    • Current: 2 mA
  • Programming Range
    • Voltage: 25 mV - 61.2 V
    • Current: 20 mA - 17.3 A
  • Programming Resolution
    • Voltage: 4.2 mV
    • Current: 6.5 mA
  • Measurement Resolution
    • Voltage: 2.2 mV
    • Current: 0.82 mA
  • OVP Maximum Setting: 66 V
  • Common Mode Noise
    • rms: 750 µA
    • peak-to-peak: <3 mA
  • Remote Sense Capability: Outputs can maintain specifications with up to a 1-volt drop per load lead. The load lead drop reduces the maximum available voltage at the load
  • Series and Parallel Operation: Identically rated outputs can be operated directly in parallel or be connected for straight series operation. Auto-series and auto-parallel operation is not available
  • Minimum Output Turn-On Delay
    • Without relay option: 18 ms
    • With relay option: 44 ms
